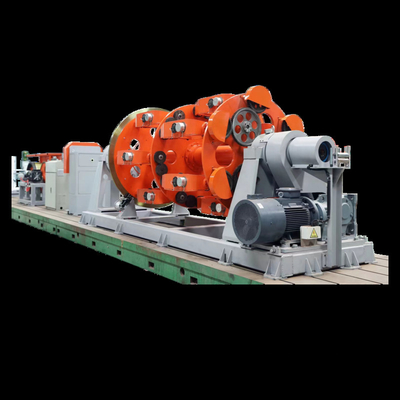

Production Max.80m/min Cage Wire and Cable Bunching and Stranding Machine of Cable Manufacturing Equipment

1 Set
MOQ
$107,000.00(1 - 2 Sets) $106,000.00(3 - 5 Sets) $105,000.00(>=6 Sets)
Price
Production Max.80m/min Cage Wire and Cable Bunching and Stranding Machine of Cable Manufacturing Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: HH-S-SZ
Usage: Stranding
Model NO.: HH-S-SZ
Strand Cage Rotation Speed: 6.5-18.5r/min
Max Lay-up Diameter: 120mm
Lay-up Pitch: 330-6320mm
Taping Head Rotation Speed: 187.9-419.0r/min
Armour Speed: 187.9-419.0r/min
Cage Brake: Pneumatic
Tension: Mechanical Friction Controlled
Basic Infomation
Model Number: HH-S-SZ, HH-S-SZ
Payment & Shipping Terms
Packaging Details: 1. film packing 2. wooden package 3.enclosed wooden package
Supply Ability: 10 Set/Sets per Month
Product Description
More information ：
Youtube:https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow
Product Description
Cage Wire and Cable Bunching Machine
Application
This equipment is for manufacturing high quality control cable, EV cable, new source of charging pile cable, data cable (USB3.1,Type-C,HDMI2.0,SFP,QSFP) and optical cable stranding and other multi-strand cable for stranding, and so on .
Model
200-300/6+12+18
400-500/6+12+18
630/6+12+18+24
Inlet wire dia.(mm)
φ0.4-φ4.0
φ0.8-φ5.0
φ0.8-φ6.0
Outlet wire dia.(mm)
φ20(MAX)
Φ40(MAX)
Φ80(MAX)
Rotation speed RPM (rpm/min)
20~170
20~120
20~100
line speed (m/min)
1~30
1~30
1~30
Pay off tension
50-1000
200-5000
300-12000
Cabling pitch (mm)
10~400
15-800
20-1600
Taping pitch (mm)
3~60
3~60
3~80
Taping rotation speed (rpm/min)
20~1300
20~1300
20~1300
Payoff reel dia.(mm)
φ200*160
φ400(φ500)*300
Φ630*375
Take up reel dia.(mm)
φ400~φ630
Φ1000~φ1600
φ1000~φ2500
Center payoff reel dia.(mm)
φ200~φ400
Φ630~φ1000
Φ800~φ1250

Characteristic:

1. Twisting while back twisting to eliminate strand stress.
2. Tension acts in wire to eliminate other factors on tension and keeps tension constant.
3. Large bending radius of cable, less turning angles.
4. Tension detection device can be added.
After service
1).Delivery dates: 25-30 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4).Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5).After service phone number online
Specification
item
value
Place of Origin
Guangdong China
Brand Name
HOOHA
Model Number
HH-S-SZ
Usage
Stranding
Model NO.
HH-S-SZ
Strand cage rotation speed
6.5-18.5r/min
Max lay-up diameter
120mm
Lay-up pitch
330-6320mm
Taping head rotation speed
187.9-419.0r/min
Armour speed
187.9-419.0r/min
Cage brake
Pneumatic
Tension
Mechanical friction controlled
Company Profile
