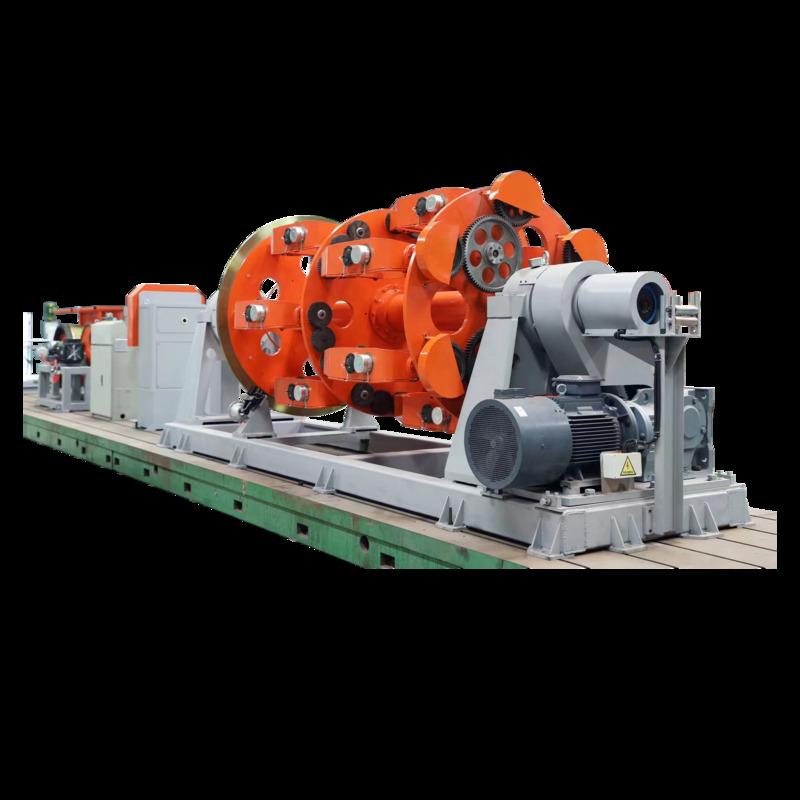

Environmentally Friendly Cage Stranding Machine for Wire Manufacturing Equipment

1 Set
MOQ
$55,660.00(1 - 1 Sets) $55,600.00(>=2 Sets)
Price
Environmentally Friendly Cage Stranding Machine for Wire Manufacturing Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: HH-400/500/630
Usage: Stranding
Type: Stranding
Automatic Grade: Automatic
Motor: Germany-Siemens
Inverter: Siemens
Wire Material: Copper/aluminum/steel
Specification: CE ISO
HS Code: 8479400000
Warranty: 12months
Transport Package: Wood Package
After-sales Service: Overseas Service Provided
Basic Infomation
Model Number: HH-400/500/630
Payment & Shipping Terms
Packaging Details: 1. film packing 2. wooden package 3.enclosed wooden package
Supply Ability: 5 Set/Sets per Month
Product Description
Specification
item
value
Place of Origin
China
Brand Name
HOOHA
Model Number
HH-400/500/630
Usage
Stranding
Type
Cable Stranding Machine
Automatic Grade
Automatic
Motor
Germany-Siemens
Inverter
Siemens
Electric Element
Siemens and Omron
Specification
CE ISO
HS Code
8479400000
Warranty
12 months
Transport Package
Wood Package
Product Description
Environmentally Friendly Drum Type Cable Laying Up Machine
for Wire Manufacturing Equipment
Application：
 The line is used for stranding single single-core cables or tight buffered fibers with NO. Less than 12 together and then extruding the sheath after the aramid yarn having coated. It can also be used for extruding outer sheath of multi-fiber branch or bundled optical cable.
This machine is widely used in a variety of multi-core contral cable into a cable and armored. The cross-section of the wire core 1.5~6mm².

Advantage：
Advanced practicality and performance of the machine, beautiful appearance, easy operation, maintenance and repair, is the choice for small and medium-sized cable factory equipment.
Features:
1.High rigid, high speed and low inertia.
2.100% Back twist design insure that no abrasion damage while stranding.
3.Most advanced emergency stop device.
4.Various PLC electrics optional.
5.Constant Bobbin back tension achieved by positive device & Single bobbin rotation is electronically sensed for controlling the
required tension.In addition,magetic tension control system is optional which is cheaper than the pheumatic mode.
5.Planetary stranding machine is qualified for any wire/cable processing job
Technical Parameter
Dia. of inlet wire (mm)
Copper: 1.55-5.0
Aluminum: 1.8-5.0
Steel: 1.2-3.0
Rotating speed (r/min)
46-116
35-88
24-60
Stranding pitch
40-586
39-777
57-1134
Taping RPM (r/min)
185-416
Taping pitch (mm)
8.2-147
The wire samples
The machine is mainly used for steel core cable, bare copper cable, bare stranded aluminum cable, but also for rubber cables, multi-strand power cables and all kinds of communications wire into a cable.
