BAOCHUAN Multifunctional High Quality Planetary Wire Rope Stranding Machine

1 Set
MOQ
$130,000.00(1 - 4 Sets) $126,000.00(>=5 Sets)
Price
BAOCHUAN Multifunctional High Quality Planetary Wire Rope Stranding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Usage: Multifunctional, Stranding
Model Number: 630(6+12)
Name: Planetary Stranding Machine
Function: Cable Wires
Selling Units: Single Item
Single Package Size: 1180X220X220cm
Single Gross Weight: 150kg
Diameter Of Single Wire: 1.5-5mm (Thread Hole15mm)
Basic Infomation
Model Number: 630(6+12)
Payment & Shipping Terms
Packaging Details: nude, plastic film packing or as per customers requirement for Catenary shot blasting machine used for workpiece surface strength
Supply Ability: 10 Set/Sets per Month Catenary shot blasting machine used for workpiece surface streng
Product Description
Product Description

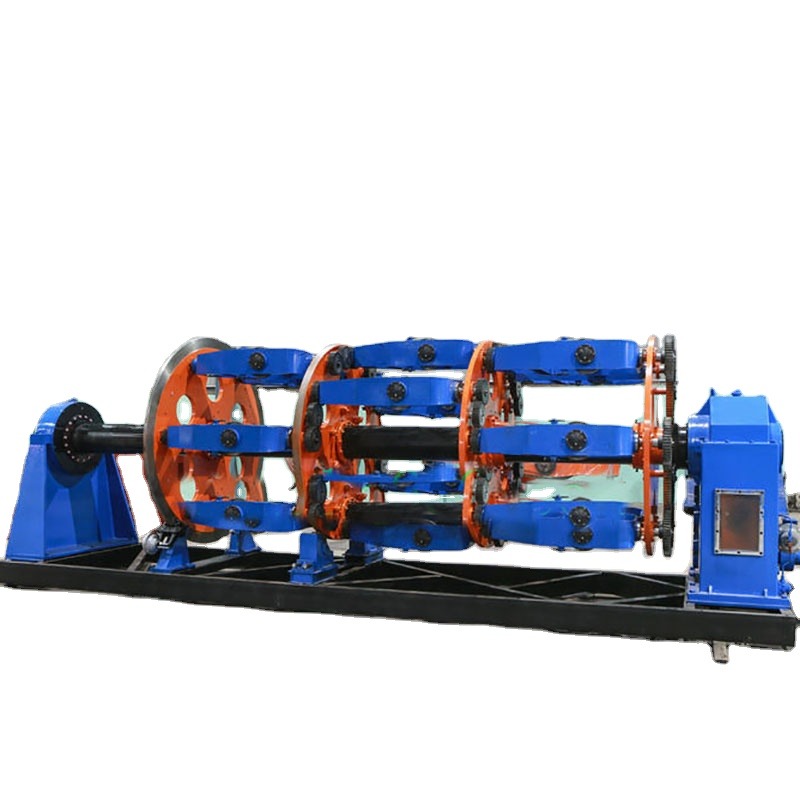

Planetary stranding machine
Size Information
1 φ1000-1600mm pay off without shaft 1set 2 630 Independent pay off 1set 3 6B cage 1set 4 12B cage 1set 5 Wire guide stand 2set
6 Double line die holder 1set 7 Vertical meter counter 1set
8 φ400/4 high speed taping machine 1set
9 φ1600mm dual wheel capstan 1set
10 Security fence 1set
11 1250-2500mm Take up without shaft 1set
12 Electric control 1set
Diameter of single wire
φ1.5-5mm (Thread hole15mm)
Max cabling diameter
φ35mm(The center hole of stranding cage(70mm)
Max rotary speed of each cages
44-101 RPM
Pitch range
42-716mm
Max line speed
4.26-31.3m/min
Taping head rotation speed
166 ~ 380rpm (six steps)
Taping pitch
11 ~ 193mm
Capstan
φ1600mm (double wheels)
Payoff bobbin in the cage
φ630mm (bobbin drawing provided by customer)
Payoff bobbin
φ1000-1600mm
Take-up bobbin
φ1250-2000mm
