High Speed yarn assembly bobbin to bobbin yarn winder
If you want to see more products, please click here to vew more

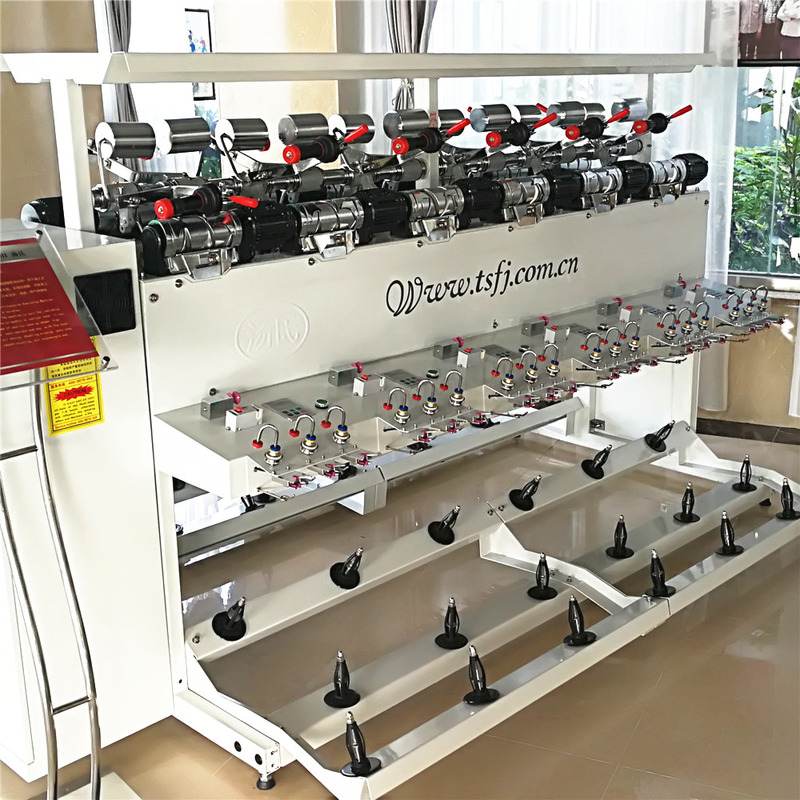

TS008B Doubling Machine, it can winding 2-3 ply of Fiber yarns, Cotton yarns, Wool yarns, FDY, Polyester yarns and etc, it can take up with Tube bobbins for TFO twisting machine preparing, and also can take up with conical Cone for Weaving machine using . It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.
Parameters:
1. Drive: every spindle per motor
2. Winding speed: 300-800M/min
3. Has function of auto stop when yarn break.
4. Each spindle with length counter;
5. Advanced control panel;
|
Bobbin type: |
6’(170mm) |
|
Layout: |
Double-side, can be 12-120 spindles |
|
Spindle Gauge: |
280mm |
|
Working speed |
300-1000 Meter/min |
|
Power Consumption |
0.09KW/spindle |
|
Doubling No. of yarns: |
2-3 plys |
|
Take-up package |
Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 |
|
Package Size |
Max φ220 |
|
Auto Stop Device |
Each spindle install auto stop device |
|
Electronic Anti-Stack |
Inverter control |
|
Air Splicer |
Optional installed |
|
Blower cleaner |
Optional installed |
|
Lighting System |
Optional installed |
|
Dimensions |
L 11300 x W 1250 x H 1600 mm(60 spindles machine) |
Q: What is the real winding speed for this machine
A: It's depends on how the performance and take up package formed, if the take up package formed well, then you can increase the speed, normal winding machine is 600-800m/min
Q: My bobbin is some kind of special, is that workable on the machine?
A: We will make the spindle head base on the bobbin that customer provide.
Q: The yarn always break, how to solve it?
A: 1. Check the tension first, if the tension is too big, just reduce some weight
2.Check the yarn whether it's in the right path.
3.Check the quality of yarn, sometimes yarn breakage due to the weak yarn
Q: How to solve the problem if the package become too hard and start bounce?
A: Try to reduce the tension or speed
Q: Does your machine shake when full load running?
A: No, our machine frame is very strong, it's quite stable
Jiangsu Tangshi Textile Machinery Group Co., Ltd was an experienced and professional manufacturer, it already has 30 years' experience of producing drum winding machines, with advanced technics and production equipments it can output more one thousand winding machines annually. after these years hard work and faith cooperation, Jiangsu Tangshi Textile Group Co., Ltd got a good reputation. our products like GA014 series soft and tight winding machine, TS008 semi-automatic soft and tight winding machine, TS230,280,290,300 big take-up winding machine. and we also can customize machines according to the customers' special demands. we service the textile industry in conformance with the aim of “professional produce, faith operation, reputation brand ”. The products are widely sold at domestic and also export to south-east asia countries gradually.To supply all kinds of winding machine is our company's feature, good quality and in time deliverly is our promise. sincerely hope we can go forward hand in hand and set up bright life together!Winding machine------------Jiangsu Tangshi Textile Machienry Group Co., Ltd will be your best choose!
