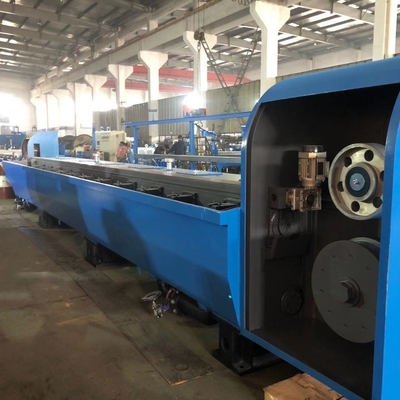

Home /Products/Wire Spooling Machine/Industry Rod Wire Machinery of Electric Wire and Cable Making/Rod Wire Breakdown Machine/Aluminum Wire Making Machine with Annealing Machine with 800 Basket Spool Take

Industry Rod Wire Machinery of Electric Wire and Cable Making/Rod Wire Breakdown Machine/Aluminum Wire Making Machine with Annealing Machine with 800 Basket Spool Take

1 Set
MOQ
Industry Rod Wire Machinery of Electric Wire and Cable Making/Rod Wire Breakdown Machine/Aluminum Wire Making Machine with Annealing Machine with 800 Basket Spool Take
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: F-LHD450
Usage: Drawing
Total Power(KW): 470
Condition: New
Supplier: FAR EAST(CHINA)MACHINERY CO.,LTD
Color: Blue
Spare Parts: Cheap But High Quality
After-sales Service: Reliable And Satisfactory
Application: Electric Wire And Cable Making Industry
Name: Copper/aluminum Wire Drawing Line
Basic Infomation
Model Number: F-LHD450
Payment & Shipping Terms
Packaging Details: Standard export packing or as customers' requirement
Supply Ability: 100 Set/Sets per Year
Product Description
Shanghai Copper &Aluminium Rod Wire Machinery/ Rod Wire Breakdown machine/wire making machine with annealing machine with 800 basket coil take up
Product Description
Usage
The machine is used to draw copper rod from Ø 8 mm to Ø 1.2~4.0 mm.
Main Parameters of Sliding Heavy-Duty Copper Wire Drawing Machine With Annealer
Item
F-LHD450/9
F-LHD450/11
F-LHD450/13
Inlet Wire Dia.(mm)
Ø 8
Ø8
Ø 8
Outlet Wire Dia.(mm)
Ø 2.0~4.0
Ø 1.5~4.0
Ø 1.2~4.0
Max Die No.
9
11
13
Drawing Capstan Dia.(mm)
450
Max. Line Speed(mm)
18
22
25
Main Motor Power(KW)
250
250
250
Total Power(KW)
725
750
750
Annealer Power
70V×5000A
Drawing Capstan
Coated with tungsten carbide
Dual Takeup Standard(mm)
PND500/630
Traversing Type
Motor type
Lubrication Type
Immersion and spraying
Main Parameters of Sliding Heavy-Duty Aluminum Wire Drawing Machine With Annealer
Item
F-LHD450/9
F-LHD450/11
F-LHD450/13
Inlet Wire Dia.(mm)
Ø 9/12.5
Ø9/12.5
Ø9/12.5
Outlet Wire Dia.(mm)
Ø 3.0~5.0
Ø 2.3~5.0
Ø 1.8~5.0
Max Die No.
9
11
13
Drawing capstan Dia.(mm)
450
Max. Line Speed(mm)
18
20
25
Main Motor Power(KW)
250
250
250
Total Power(KW)
385
385
385
Drawing Capstan
Coated with tungsten carbide
Dual Takeup Standard(mm)
PND500/630
Traversing Type
Motor type
Lubrication Type
Immersion and spraying
Components
Pay-off stand, main drawing machine,
wire accumulator,
automatic dual take-up device(or coiler according to customer),
wire pointer and stripper,
electrical control system, etc
Detailed Images
Main Capability Features
1) The drawing blocks are arranged in a horizontal single-bank tilt, and the distance between the cantilevers of all die holders are short, and in equal length, and have a strong stiffness.
2) The surface of drawing blocks is coated with tungsten carbide (powder), which is strong in hardness and abrasion resistance, and has a long life span.

3) The main drawing machine and fix capstan are driven separately, and all the dies can be changed conveniently and easily.

4) Continuous dual take up, automatic reel-change, the conductor elongation is not changed when changing the reel. The success rate of automatic reel-change is more than 99%.

5) Driven by DC motor, the imported PLC and touch Screen( Siemens of Preface) are convenient for operator to set and display the parameter on the touch screen.
Finished Product
Packing&Shipping
After Sales Service
①Free service guarantee period is: 12 months after shipping (except wearing parts)
② Provides long term spare supply, technical support and maintenance service for the machine, but we will charge for travel fee
and other basic cost.
We guarantee when we get the information of the customer, our engineers will analyze immediately, then response as soon as
possible, if need our engineers come, 24hours will be arrived inland, and one to two week oversea based on getting visa on time.
Company Introduction
Far East (China) Group Limited, we design and produce metal casting equipment, wire drawing equipment, and cable production machinery of the highest quality. We pride ourselves on our various strengths that begin with product design and end with our excellent after-sale services to make sure that our customers are satisfied with their metal machinery. Feel free to browse our site and contact us if you have any additional questions about our company or products.
FAQ
A:I am newer on this field, I don't know how to plan?
Q : Every salesman of us can tell you how to plan the workshop ,how to install the equipment,how to save the costs and so on.
A: How can i install my machine when it arrives?
Q: We will send our engineers to your factory to install the machines and train your staff how to operate the machines
A:How about the spare part?
Q: We can offer you a spare parts list for your reference.
A : Which industries are mainly targeted at Far East's equipment?
Q : Wire and cable, enameled wire, electron beam, cutting line, magnetic wire,and S.S.wire etc.
