WIREPRO Automation Focus on Machines & Solutions for Wire Processing & Harness Assembly, welcome you to check more equipment on our website. If you need any support, welcome contact us anytime ^_^ |
| Model | HB-MF1 | HB-MF2 |
| Type | Floor-standing with tying function | Floor-standing no tying function |
| Available Wire Size | Φ1-8mm ( can custom) | |
| Max Coil Weight | 3 kg | |
| Winding Inner Dia | 50-300mm | |
| Winding Out Dia | Standard 320mm; Max 350mm | |
| Winding Speed | 1-13 cycle/s | |
| Bundling Diameter | Φ8-30mm / 18-45mm / 40-80mm | |
| Power Supply | 110/220VAC,50/60Hz | |
| Power | 500W | |
| Dimensions | 100*45*80cm | 80*100*1030cm |
| Weight | 170 kg | 150 kg |

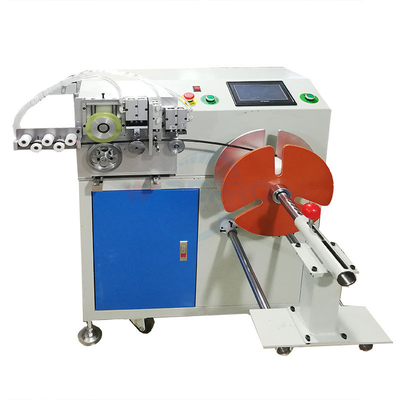

The HB-MF1 and HB-MF2 can full-automatic metering, cutting, and winding wire. The HB-MF1 has wire bundling parts, the HB-MF2 not, better for small wire spool rewinding.
There are three winding systems for wire roll and wire reel winding. The operators just need to put the wire into the wire clamp and then step the footswitch, the machine will automatically cut and wind the wire, tying wire roll function can be costumed. "
1. Full-featured with metering, cutting and windings. The tying function can be customized
2. Can bear heavier coils than desk type
3. High accuracy metering the wire length
4. The number of turns can be arbitrarily set and the winding speed can be adjusted
Application
More machine pictures
|
Wire winding machine HB-W25
|
Wire tying machine HB-T40
|
wire winding and bundling machine HB-
|
|
Desktype wire metering cutting winding bundling machine HB-M01 |
Desktype wire metering cutting winding machine HB-M02
|
Floor standing wire metering cutting winding machine HB-M01 |
Floor standing wire metering cutting winding bundling machine HB-M02 |
Samll size machines: Standard carton
Medium size machines: Thickened cartons and wooden pallets
Big size machine: Plywood wooden cases
| 1. What are the optional accessories and wearing parts? Optional accessories: Wire spool pre feeder, Wire collector, wire coiler or wire stacker. Wearing parts: Generally blade and belt. For More info, please contact WIREPRO. |
| 2. Operation panel and user manual language? English and Chinese are optional. |
|
3. How long is the lead time? Ready time: Generally the standard machine will be ready in 2-3 workdays, the customized machine please check with us again when placing an order.
Packaging: The machine is packed in a carton or wooden box according to the size. Sufficient cushioning material will protect the machine intact during long-distance transportation.
Transportation: Support shipping via air, sea, and railway many transportation modes. |
|
4. How do we install and operate the machine?
Small Machine: The user can install and adjust the machine according to the Manual and video of how to install and set the machine. If you have any questions, please contact our technical support (Email: support at wireproauto.com) to provide online, video, and other support. If customers really need we can make exceptions on-site service (expense will be borne by customers).
Large full automatic machine: We will arrange engineers on-site installation, testing, and adjustment of equipment. Please check with us about the details.
We also welcome you to come to our factory for more training. |
| 5. What after-sales service is provided? WIREPRO has an experienced technical support team to be responsible for troubleshooting for customers via phone calls, emails, videos, etc. If you need spare parts, DHL generally could deliver them in about 3-5 days. |
