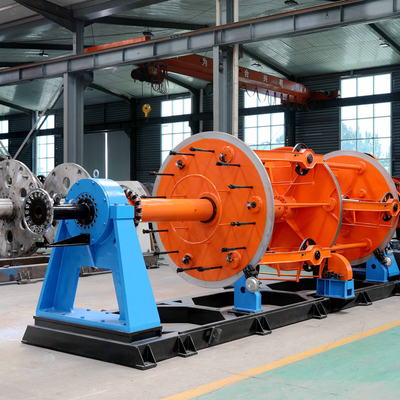

6 cores Cable Core Lay Up Machine /Electric Cable Machinery/Planetary Laying-up Stranding Machine
Application: The machine is used for stranding or armouring all kinds of different cross-section core rubber cable, power cable, control cable and charging pile cable production process.
b) Component: Central pay-off, frame host, assemble holder, taping device, armouring device, meter counter, traction device, take-up and traverse device, transmission and electric control sys
c) Mail Character:
1. More kind and specification, this series machine can be used extensively, so customers can choose the very laying-up equipment.
2. Equipped with retreat-spiralling and non-retreat-spiralling function. The way of retreat-spiralling is retreat-spiralling circle , planet retreat-spiralling and sprocket retreat-spiralling.
3. The way of pre-spiralling is manual and automatic, the same to thread reel clamp .And the take-up is axle or non-axle.
d) Technical Parameter
|
Specification |
CL1000/1 1 3 |
CL1250/1 1 3 |
CL1600/2 3 |
CL2000/2 3 |
|
Dia. Of inlet wire(mm) |
5-20 |
6-25 |
10-35 |
15-45 |
|
Lay up Dia.(mm) |
60 |
80 |
100 |
120 |
|
Frame rotation speed |
10-25 |
5-13 |
3.9-11.2 |
|
|
Lay-up pitch(mm) |
208-3680 |
420-7569 |
362-6969 |
|
|
Taping Speed(r/min) |
188-419 |
188-419 |
||
|
Taping pitch(mm) |
11.9-195.9 |
13-213 |
||
|
Armouring speed (r/min) |
188-419 |
188-419 |
||
|
Armouring pitch (mm) |
11.9-195.9 |
13-213 |
||
|
Capstan Dia.(mm) |
2000 |
2000 |
2500 |
|
|
Linear speed(m/min) |
4.98-36.82 |
5.31-40.08 |
||
|
Size of take-up reel(mm) |
PL2000 |
PL2500 |
PL3150 |
|
| Contact Person : | LIU |
|---|
