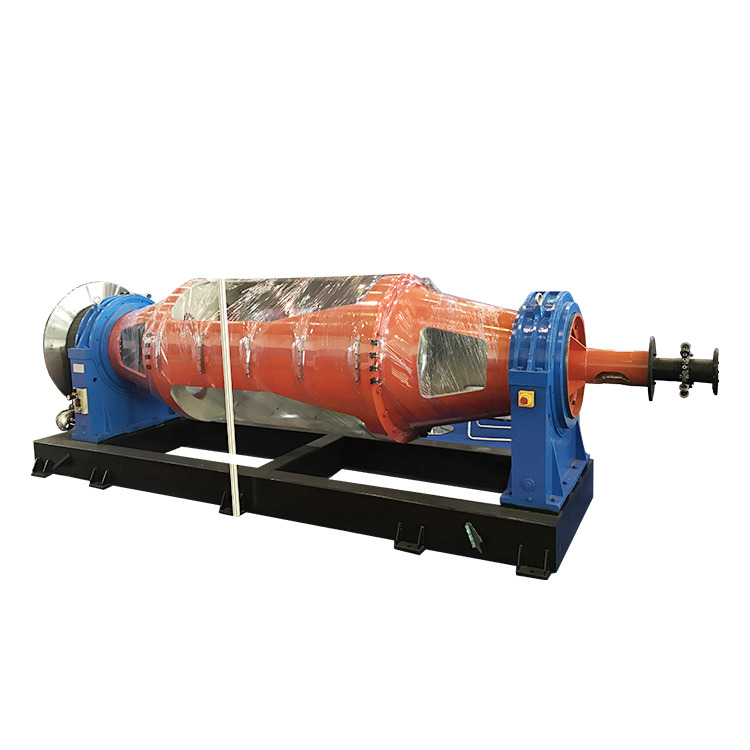

Stranding of Tubular Insulation Copper Wire and Cable Making Stranding Machine

1 Set
MOQ
Stranding of Tubular Insulation Copper Wire and Cable Making Stranding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 630
Usage: Stranding
Color: Customized
Warranty: 12 Months
PLC: Optional
Name: Tubular Stranding Insulation Copper Wire And Cable Making Machine
Basic Infomation
Model Number: 630
Payment & Shipping Terms
Packaging Details: Safety package for container loading Lead Time :Shipped in 70 days after payment
Supply Ability: 120 Set/Sets per Year
Product Description

Application:

The high speed machines mainly used for stranding copper wire, aluminum wire, steel wire, ACSR and wire rope. Accompanied with taping head, it can used for insulation cores and some control cable stranding process.
Component:

Central pay-off, cage host, taping device(optional), capstan, take-up and traverse device and electric control system.
Main Character:
1.The machine can work steadily with the whole holder, and the protect cover adopts high grade seamless steel tube, so the structure is also steady with lower noises.

2.The timing power can be manipulated easily to adjust the speed .The protect cover has the right and reverse direction circumrotate.

3. The main machine and the haul-off unit adopt shift gears case, so the working intensity is lower and the pitch is exact.

4. Equipped with automatic parking equipment -the safeguard, it means the machine will stop when the thread runs out or the door is open.

Main Parameters of JGGB-500

ModelJGGA500/1+6JGGA500/1+12
Single wire diametercopperø 1.2 ~ ø 3.5ø 1.5 ~ ø 3.5
conductorø 1.5 ~ ø 4.0ø 1.5 ~ ø 4.0
steelø 1.2 ~ ø 3.0ø 1.2 ~ ø 3.0
Maximum Stranding diameter (mm)ø 3.0 ~ ø 15ø 3.0 ~ ø 25
Max Simplified transfer speed (r/min)600600
Traction wheel diameter (mm)ø 1250(pairs of engine)ø 1500
Qualifying speed (m/min)22-166.8522-166.85
Stranding pitch41-31241-312
Rotating speed (r/min)15001500
Hydraulic brake motor power (kw)0,120,12
Reel specificationsPND630PND630
Cage reelPND500PND500
Take-plate sizePN1600PN1600



BEYDE is a subsidiary of Hebei HEXING electrical machinery Co., Ltd., a professional manufacturer and exporter of cable equipment. Founded in 1983 by Mr. Chen Yuke, grandfather of current president Mr. Chen Jiuzhang, HEXING has a well-equipped factory with an area of 10,000 square meters located in Hejian, Hebei province, home to the manufacture of cable machinery and equipment. HEXING is a well-known brand in China's cable industry, serving over 70% cable manufacturers in northern China. BEYDE supplies all types of machines including Laying-up machine, Rigid Stranding Machine, Tubular Stranding Machine, Planetary Stranding Machine and help wire & cable manufacturers lower production cost and ensure quality of final products. Beyde was established for export business of HEXING as a result of increasing OEM business of HEXING for many Chinese exporters. With mature technological expertise, BEYDE provides cost-effective solutions for wire & cable manufacturers to expand or update their production lines. Our machines have been exported to the United States, Russia, Malaysia, Saudi Arabia, Iran and other countries. The quality and performance of our products has been widely recognized and praised by overseas customers. We can customize the capacity, color of our machines according to the demands of clients. We look forward to working with more overseas cable manufacturers to have mutually beneficial cooperation and create success and glory together!

Our products passed ISO 9001 international quality system certification with domestic first-class product quality testing center.





FAQ

1,Q: What is your main brand for the electrical and mechanical parts?

A: China famous brand

2, Q:could we appoint the parts brand?

A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.

3, Q: could you please arrange the installation and commissioning ?

A: Yes , we could and the buyer pay the charge

4, Q: could you arrange the production education?

A: Yes , we could and the buyer pay the charge

5, Q: could you do the design for the whole plant

A: Yes , we can.

6, Q: could you offer the production process design

A: Yes , we can.

7, Q: what is the difference with other supplier?

A: what we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .

8.Q:What's the payment terms?

A:T/T,30% deposit and 70% balance before delivery.

9, Q:How long the guarantee:

A: one year and charge for repair the whole life.
