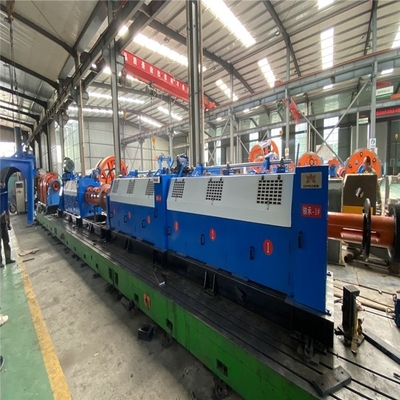

Wire processing high speed tubular strander steel wire rope twisting machine planetary strander rigid strander

High Speed 700rpm Tubular Stranding Machine Steel Wire Rope Twisting Machine 300/1+12

Professional Steel Wire Rope Stranding Machine PN300 12 Bobbin Tubular Strander

300/12 Tubular Stranding Machine
Machine Technical Parameter
NO ITEM DESCRIPTION
1 Maximum Working Speed (R.P.M) 1500
2 Normal Working Speed(R.P.M) 1000
3 Inlet wire diameter range(mm) 0.20-0.75
4 Maximum stranded rope diameter(mm) 3.2
5 Control method of lay-length Electronic stepless lay-length control
6 Range of Lay-length(mm) 0-100mm(Customized )
7 Diameter of dual capstan wheel (mm) Φ477.5x2
8 Core wire/strand bobbin size (mm) Customized
9 Take-up bobbin size(mm) Customized
10 Bobbin in cradle size (mm) Φ200
11 Main motor power(kw) 18.5
12 Traction motor power(kw) 7.5
13 Take-up motor power(kw) 4
Machine Configurations description
ITEM DESCRIPTION
Load method of core pay-off
bobbin
independent type
Tension control of core bobbin Adopt mechanical damping adjust the tension with damping chain,
Pay-off bobbin size Customized(The buyer supply the drawings)
Tube driving mode
Drive by the synchronous toothed belt which connecting with the main
motor.
The structure and process of tube
Made up of high quality seamless steel pipe,get the tempering treatment
after cuttuing and welding.
After finish machining,balanced by accurate adjustment balancer,ensure
the balance of operation.
Wire guide dies The wire guide dies are made up of carboloy metal(YG8)
The support method of tubes The tubes are supported by large bearings,each tube has three cradles.
The lubricate method of large
bearing
Pumped oil lubrication
The brake system of tubes Every tube possess one set of pneumatic brake devices.

Beyde Trading Co.,Ltd.(Know as Beyde) is the representative office for cable stranding machine factory(built in 1983) and Power Transformer Factory(Built in 1995)in Hebei, China. BEYDE was set up to meet international business for those factories. One hour and a half hours from Tianjin Port, China, BEYDE keeps superior quality and competitive offers for global valued customers.

Hebei BEYDE Trading Co.,Ltd. is a manufacturer engaged in producing cablemachines over 30 years. The main products in our company including wire drawing equipments, cable stranding machine, strandingmachinery, plastics extruder and cable Reel drum. We always insists on using the best material to make the machine, so our machines are durable than general machine. We have a lot of customers who use our machine over than 20 years and still using now. Besides, We are makers by ourselves, not machine traders. Therefore, We sell to customers at a low price. We can design any types machine according to the demand of customers. We offer professional technique and services to our customers. Service overseas is provided by our company. We look forward to become your most valuable partner in the future. Let us create a wonderful future!
