Stranding of electrical cable stranding separate motor 630/6+12/12+18 not tied to a particular type of machine

1 Set
MOQ
Stranding of electrical cable stranding separate motor 630/6+12/12+18 not tied to a particular type of machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 630
Usage: Stranding
Name: Electric Cable Stranding Machine Independent Motor Separate Motor
Single Wire Diameter: Copper 1.5-5.0m,Aluminum1.8-5.0mm
Max Stranding Diameter: 45mm
Traction Line Speed: 61m/min
Pay-off Bobbin Size In Frame: PND 630
Traction Wheel Size: 2000mm
Central Pay-off Size: PN1250-PN2000
Take-up Bobbin Size: PN1250-PN2500
Main Motor Power: 75-110KW(AC)
Basic Infomation
Model Number: 630
Payment & Shipping Terms
Packaging Details: Safety package for container loading Lead Time :Shipped in 70 days after payment
Supply Ability: 120 Set/Sets per Year
Product Description

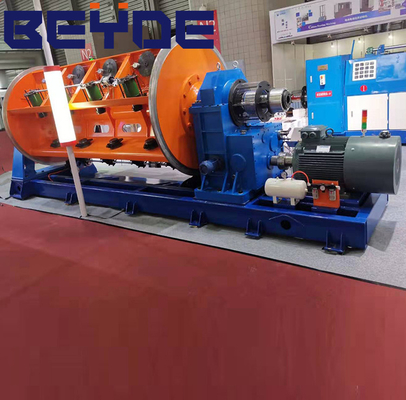

This machine is mainly suitable for the production of large length bare aluminum, bare copper wire, and steel core aluminum stranded wire. The equipment adopts double active and double traction devices. The splitter wheel adopts natural branch line to avoid bobbin rubbing during the stranding process. The pay-off wire tension is controlled by pneumatic tension to ensure uniform tension when the reel is full and empty, and has a unique function of completely broken automatic parking device. The disconnected parking is directly controlled to each pay-off reel, when the wire is broken. The host automatically stops immediately when reel stops. The whole machine is controlled by the programmable controller (PLC) and man-machine interface (color touch screen). The electronic control system is advanced, easy to operate and reliable.



2.1

Single wire diameter

Copper 1.5-5.0m

Aluminum1.8-5.0mm

2.2

Max stranding diameter

45mm

2.3

Strand cage rotation speed

12 bobbins

170r/min, total

18 bobbins

150r/min, total

2.4

Stranding pitch

12 bobbins

47mm-653mm

18 bobbins

53mm-739mm

2.5

Traction line speed

61m/min

2.6

Pay-off bobbin size in frame

PND 630

2.7

Traction wheel size

2000mm

2.8

Central pay-off size

PN1250-PN2000

2.9

Take-up bobbin size

PN1250-PN2500

2.10

Main motor power

12 bobbins

75KW(AC)

18 bobbins

90KW(AC)

Traction device

110KW(AC)

BEYDE is a subsidiary of Hebei HEXING electrical machinery Co., Ltd., a professional manufacturer and exporter of cable equipment. Founded in 1983 by Mr. Chen Yuke, grandfather of current president Mr. Chen Jiuzhang, HEXING has a well-equipped factory with an area of 10,000 square meters located in Hejian, Hebei province, home to the manufacture of cable machinery and equipment. HEXING is a well-known brand in China's cable industry, serving over 70% cable manufacturers in northern China. BEYDE supplies all types of machines including Laying-up machine, Rigid Stranding Machine, Tubular Stranding Machine, Planetary Stranding Machine and help wire & cable manufacturers lower production cost and ensure quality of final products. Beyde was established for export business of HEXING as a result of increasing OEM business of HEXING for many Chinese exporters. With mature technological expertise, BEYDE provides cost-effective solutions for wire & cable manufacturers to expand or update their production lines. Our machines have been exported to the United States, Russia, Malaysia, Saudi Arabia, Iran and other countries. The quality and performance of our products has been widely recognized and praised by overseas customers. We can customize the capacity, color of our machines according to the demands of clients. We look forward to working with more overseas cable manufacturers to have mutually beneficial cooperation and create success and glory together!

Our products passed ISO 9001 international quality system certification with domestic first-class product quality testing center.





FAQ

1,Q: What is your main brand for the electrical and mechanical parts?

A: China famous brand

2, Q:could we appoint the parts brand?

A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.

3, Q: could you please arrange the installation and commissioning ?

A: Yes , we could and the buyer pay the charge

4, Q: could you arrange the production education?

A: Yes , we could and the buyer pay the charge

5, Q: could you do the design for the whole plant

A: Yes , we can.

6, Q: could you offer the production process design

A: Yes , we can.

7, Q: what is the difference with other supplier?

A: what we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .

8.Q:What's the payment terms?

A:T/T,30% deposit and 70% balance before delivery.

9, Q:How long the guarantee:

A: one year and charge for repair the whole life.
