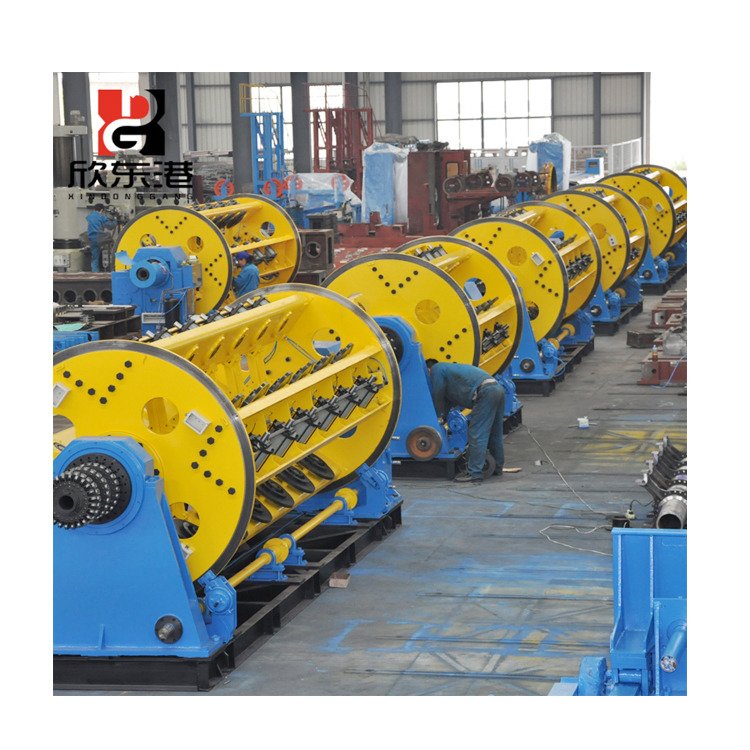

CC/AC/ACSR Manufacturing Frame Perfect Rigid Stranding Machine For Cable Stranding

1 Piece
MOQ
$260,000.00(1 - 1 Pieces) $120,000.00(>=2 Pieces)
Price
CC/AC/ACSR Manufacturing Frame Perfect Rigid Stranding Machine For Cable Stranding
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: JLK500/6+12
Usage: Stranding
Name: Rigid Frame Stranding Machine
Single Wire Diameter: Copper1.5~4.5; Al 1.8~5 Mm
Stranding Diameter: 25mm
Rotating Speed Of Cage: 190~68rpm
Stranding Pitch: 35-761mm
Application: CC/AC/ACSR Manufacturing
Basic Infomation
Model Number: JLK500/6+12
Payment & Shipping Terms
Product Description
Product Description

Features

As a result of technical innovation and optimized design, rotating speed of the stranding case Applicable to stranding copper conductor, aluminum conductor, and aluminum conductor steel reinforced (ACSR) without backtwist, as well as insulated wire and strand. Fitted with a compactor, it is also applicable to stranding round-shaped, semi-round-shaped, and sector-shaped copper conductor or aluminum conductor. Configuration 1.Basic: FN1600 end-shaft pay-off stand, stranding cage, hanger for individual bobbin loading, adjustable closing die stand, main reducer and 36-gearbox, length counter, twin motorized capstans with natural conductor divider, φ2500 end-shaft take-up with traversing unit, DC motor and DC speed regulator, electric control cabinet and operation desk, sliding safety fence. 2.At user’s option: shaft-type pay-off stand, batch loader, ultrasonic controller for tension from bobbin, closing die stand and roller compacting unit, gantry travel take-up with traversing unit, AC motor and variable frequency speed regulator, curved sliding fence or motorized rotating safety fence.
Specification
Technical Parameters of JLK 500 Series

Model
Single wire diameter
(mm)
Stranding diameter (mm)
Rotating speed of cage (rpm)
Stranding Pitch (mm)
JLK500/6+12

Copper1.5~4.5;
Al 1.8~5
25
190~68
35~761
JLK500/6+12+18
35
190~58
35~892
JLK500/12+18+24
45
162~49
41~1052
Technical Parameters of JLK 630 Series
Model
Single wire diameter
(mm)
Stranding diameter (mm)
Rotating speed of cage (rpm)
Stranding Pitch (mm)
JLK630/6+12+18+24
Copper1.5~4.5;
Al 1.8~5
45
207~54
38~1104
JLK630/12+18+24
45
176~54
45~1104
JLK630Z/6+12+18
Copper 1.5~4.5;
Al1.8~5
35
207~64
38~930
JLK630Z/6+12+18+24
45
207~54
38~1104
JLK630Z/6+12+18+24+30
55
207~45
38~1324
JLK630Z/12+18+24
45
176~54
45~1104
JLK630Z/12+18+24+30
55
176~45
45~1324
Technical Parameters of JLK 710 Series
Model
Single wire diameter
(mm)
Stranding diameter (mm)
Rotating speed of cage (rpm)
Stranding Pitch (mm)
JLK710X/6+12+18
Al 1.8~5;
Al shaped wire (diameter equal to 2.8~6.0)
35
156~48
37~924
JLK710X/6+12+18+24
45
156~42
37~1041
JLK710X/12+18+24
45
132~42
44~1041
Company Profie
Deyang Xindonggang Mechanical and Electrical Equipment Co.,Ltd/XDG（predecessor company name :Deyang Dongjiagang Mechanical & Electrical Equipment Co.,ltd hereinafter referred to as EBP) established in September 2017,is a High Tech Enterprise and Specialized in the research and development,XDG have more technical expert ,and senior Engineers ,and organized research and development team ,In the absorption of the latest foreign technology, through in-depth research and exploration, to create a function, structure, technology, materials to update products.
