Home /Products/Spool Winding Machine/Automatic Textile Field Cone Yarn Spool Winding Machine

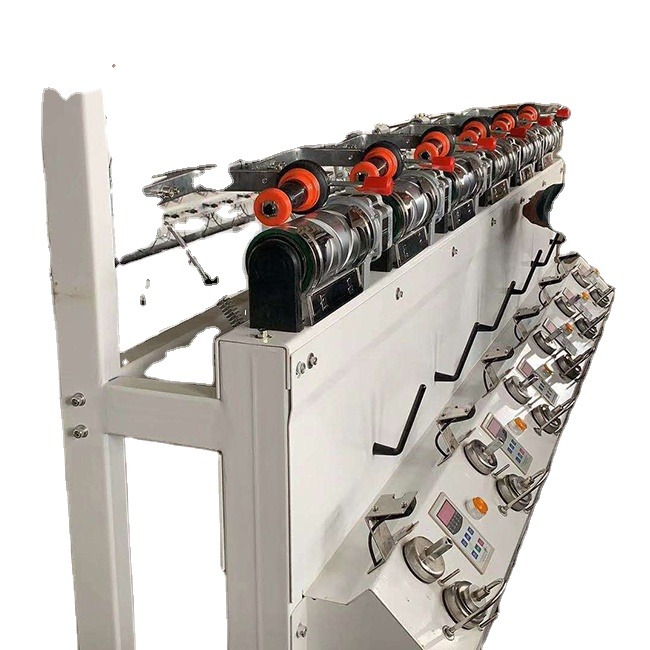

Automatic Textile Field Cone Yarn Spool Winding Machine

1.0 set
MOQ
Automatic Textile Field Cone Yarn Spool Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Textile Machinery
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 3 Months
Core Components: Motor
Condition: New
Application: Textile Field
Automatic Grade: Automatic
Production Capacity: 1000-30000m
Voltage: 380V
Power: 0.09KW/spindle
Dimension(L*W*H): Each Spindle 205*1000*1500mm
Weight: 200 KG
Warranty: 1 YEAR
Product Name: Auto Cone Yarn Bobbin Winding Machine
Winding Form: Super Type Metal Tank Cylinder
Winding Shape: Flat Tube Or Cone Tube
Wind Motion Path: 210mm
Winding Bobbin: 0° 3° 30' 4°20' 5° 57
Power Supply: Three-phase 380V,50/60 Hz
Transmission: Single Spindle Independent Ac Motor Drive
Power Consumption: 0.09 Kw/ingot
Package Diameter: 250 Mm
Yam Speed: 400-900 M/min
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard packing:auto cone yarn bobbin winding machine
Supply Ability: 100 Set/Sets per Month auto cone yarn bobbin winding machine
Product Description
Product Description
Specification
Product name
auto cone yarn bobbin winding machine
Winding shape
Flat tube or cone drun
Wind motion path
210mm
Winding bobbin
0° 3° 30’ 4°20’ 5° 57
Power supply
Three-phase 380 v 50/60 hz
Layout
Double-sided,1-10section (section 12)
Transmission
Single spindle independent ac motor drive
Power Consumption
0.09 kw/ingot
Package Diameter
250 mm
Yam speed
400-900 - m/min
Electronic wobble frequency anti-patterning function
Inverter control
Length counting device
optional
Yarn tension and waxer adjusting device
Each spindle is provided with rotary self-cleaning tensioner and waxing
Yarn break control device
Electronic yarn breakage stops
Speed regulation
Frequency control of motor speed
Blows the inflow cleaner
optional
Dimensions
Each spindle 205*1000*1500mm
