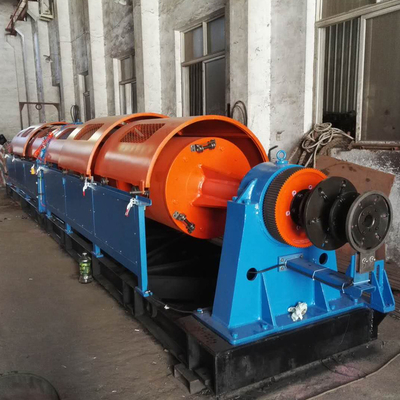

high quality JGGB-630/6 Tubular Stranding Machine
Diameter of inlet wire |
Copper |
Φ2.0~3.5mm |
|
Aluminum |
Φ2.5~5.0mm |
|
Steel |
Φ2.0~4.0mm |
|
Stranded conductor(Max) |
Φ5.0mm |
Outer-diameter of outlet wire:(max) |
400r/min |
|
Lay range |
41.3~305.3mm (27 steps) |
|
Speed of outlet wire |
16.51~122.11m/min (27 steps) |
|
Diameter of capstan |
Φ1250mm |
|
Central pay-off drum size |
PND630mm |
|
Pay-off drum size |
PND630mm |
|
Take-up/traversing device |
PN1600mm |
|
Main motor Power |
55kw(AC) |
1. What service can you supply?
Engineers available to service machinery overseas.
2. What’s the packages?
The normal package is wooden box. If export to foreign countries,the wooden box will be fumigated or use polywood case.
3. Can you do turn-key project?
Yes, We have a mature technical team that can do turnkey engineering.
4. What’s the payment terms?
30% by TT as deposit, 70% by TT or LC at sight vefore delivery.
5. What’s your advantages?
As a member of the family business, we have a copper production plant. Therefore, we are more familiar with the production process. At the same time, we have professional engineers and can get more direct use feedback. We have a good cooperative relationship with most of the domestic machinery manufacturers, so we can get a better price.
6. What’s the delivery time?
Usually 60 working days.
Contact Person : | LIU |
---|
