Features

Specifications

Model Number: 630

Usage: Stranding

Conductor: 2.0-5.0

Steel: 1.8-4.0

Cores: 1.5-5.0

Frame Rotation Speed(r/min): 400

Stranding Pitch(mm): 44-334

Linear Speed(m/min): 14-108.9

Capstan Dia.(mm): 1000+1250

Size Of Tak-up Bobbin: PN1600

Basic Infomation

Model Number: 630

Payment & Shipping Terms

Packaging Details: standard packaging.

Supply Ability: 15 Set/Sets per Month

Product Description

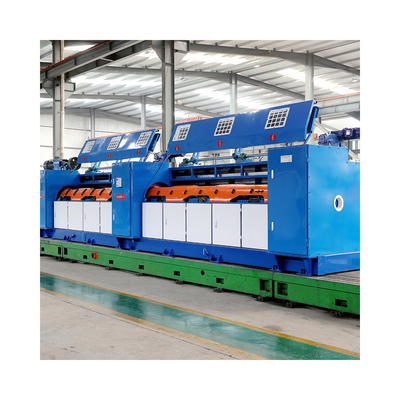

This high speed machines mainly used for stranding copper wire,aluminum wire, steel wire,ACSR and wire rope.Accompanied with taping head,it can used for insulation cores and some control cable stranding process.

Application：
This high speed machines mainly used for stranding copper wire,aluminum wire, steel wire,ACSR and wire rope.Accompanied with taping head,it can used for insulation cores and some control cable stranding process.
Component：
Central pay-off. cage host,taping device (optional),capstan,take-up and traverse device,and electric control system.

Specification

Model			400	500	630
Inlet wire Dia.(mm)	Conductor	1.5-3.5	1.8-4.0	2.0-5.0
		Steel	1.0-2.5	1.5-3.0	1.8-4.0
		Cores	1.2-3.5	1.5-5.0
Frame rotation speed(r/min)			700	600	400
Stranding Pitch(mm)			41-312	44-334
Linear Speed(m/min)			27-205.3	22-166.85	14-108.9
Capstan Dia.(mm)			800+1000	1000+1200	1000+1250
Size of tak-up bobbin			PN1250	PN1600	PN1600

Company Profile

Located in Hejian city, Hebei province, Hebei Hexing Electrical Machinery Co., Ltd. Was established in 2007. During the past years we have put all our efforts to research and development, such as design, produce, sales and serve for our customers. Our main products including Rigid Stranding machine, Tubular Stranding machine, Planetary Stranding machine, Bow Stranding machine, Laying-up machine, Drum Twister, Shielding Machine,Steel Wire Armoring machine and so on. These products are widely used all over the world. Now we are proud that we become a well-known company in this field.

Our philosophy is “innovation and Technology”. We have insisted on bring in advanced technology abroad and doing systematic expansion over the past years. We have developed an experienced mechanical and electronic research team with the ability of independent design and large-scale production. With many years of production and service experiences, we research new producing technology and update our products. As a result, our machines have been sold not only around China, and also sold to America, Russia, Vietnam, lndia, and Africa, etc. And meanwhile we win praise from our customers both in domestic and abroad. With professional sales team, skilled workers, advanced equipment and quick after-sale service, we offer you good quality products with competitive price and super service. We are your best choice. We warmly welcome you come to visit our company and have further business talk.

Why Choose Us

1.We have many years of producing experience.

2.We have skilled workers,advanced equipment and strict quality control system. 3.We have professional international sales team with good knowledge on market to supply you super service. 4.We ensure you good after-sale service to any problem during usage.

Exhibition

We attend China International Wire & Cable Industry Exhibition every year

Customer Photos

Each year lots of customers come and vist our factory for further business talk.

This is our general manager Mr. Chen with customers.

Packing & Delivery

FAQ

Q1. Where is your factory located? A1.Our factory is located in HEJIAN CITY, HEBEI PROVINCE, CHINA, we are near Beijing, Tianjin and Shijiazhuang air port, and CANGZHOU WEST high-speed railway station. Q2. What is the advantage about your company? A2.Our company has skilled technical engineer and workers and professional production line. Q3. Why should l choose your products? A3. We are direct manufacturer, we can supply high quality products with competitive price. Q4.The logo and the color can be customized? A4.Yes, we welcome you to sample custom. Q5.Any other good service your company can provide? A5.Yes,we can provide good after-sale and fast delivery. lf you have any other questions, please contact us
