Stranding Tubular Stranding Machine for steel aluminum copper wire with back twist wire machine for tubular strander machine

1.0 Sets
MOQ
Stranding Tubular Stranding Machine for steel aluminum copper wire with back twist wire machine for tubular strander machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: F-JLG 710/630
Usage: Stranding
Conditon:: Conditon:
Color: Red
Spare Parts:: Long Service Life
Loading Type:: Lumped Loading/unloading
Supplier:: FAR EAST(CHINA)MACHINERY CO., LTD
Max. Stranding Dia: 45mm
Supplier: FAR EAST(CHINA)MACHINERY CO.,LTD
Basic Infomation
Model Number: F-JLG 710/630
Payment & Shipping Terms
Packaging Details: Standard export packing or as customers' requirement
Supply Ability: 100 Set/Sets per Year
Product Description

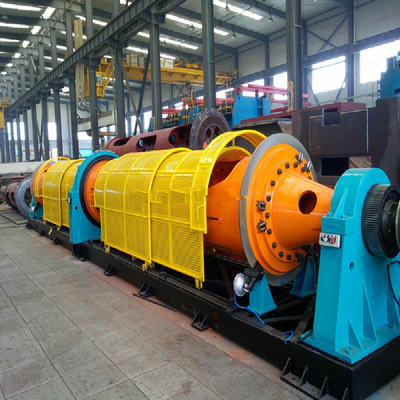

Tubular Stranding Machine for Steel Aluminium Copper Wire with Back Twist wire machine for tubular strander machine
Product Description
Usage

The machine is used for compact-strand bare aluminum wire, bare copper wire and ACSR to produce power cables.
Features

1. central shaft does not bear the reels .

2. High rigid, high speed and low inertia high speed and low inertia.

3.no abrasion damage when stranding.

4. most advanced emergency stop device.

5. suitable for power cables and high compacted cross linking cables.

6. Siemens PLC control system, operating on touch screen.
Item
Unit
F-JLK710
Stranding-single wire Dia.
mm
Ø2.2~6.5
Cage rotating speed
r/min
40~156
Hauling line speed
m/min
6~44
Stranding pitch
mm
55 ~ 1050
Capstan Dia.
mm
Ø 2500
Center height of machine
mm
1100
Payoff bobbin size in cage
mm
PND710
Center payoff bobbin size
mm
PN1600
Takeup bobbin size
mm
PN3150
Main motor power
KW
185(DC)
Install power
KW
220
Item
Unit
F-JLK500
Stranding-single wire Dia.
mm
Copper
Ø1.5~4.5
Aluminum
Ø1.8~5.0
Max. section area
mm2
Copper
500
Aluminum
630
Cage rotating speed
r/min
63~148
Hauling line speed
m/min
6.87 ~ 52.2
Stranding pitch
mm
47 ~ 825
Capstan Dia.
mm
Ø 2000*2
Central payoff bobbin size
mm
PN1600
Payoff bobbin size in cage
mm
PND500
Takeup bobbin size
mm
PN 2500
Machine center height
mm
1000
Main motor power
KW
55
Item
Unit
F-JLK630
Stranding-single wire Dia.
mm
Copper
Ø 1.5~4.5
Aluminum
Ø 1.8~5.0
Max. section area
mm2
Copper
300
Aluminum
400
Cage rotating speed
r/min
6 Bobbins
75~174
12 Bobbins
67~156
18 Bobbins
57~133
24 Bobbins
48~112
30 Bobbins
43~100
Hauling line speed
m/min
6~45.6
Stranding pitch
mm
34~1041
Capstan Dia.
mm
Ø 2500*2
Central payoff bobbin size
mm
PN1600
Payoff bobbin size in cage
mm
PND630
Takeup bobbin size
mm
PN2000
Machine center height
mm
1000
Main motor power
KW
45
Detailed Images
Main capability features
1) The reels are arranged quartering around the stranding cages. The central shaft does not bear the reels.
2) High rigid, high performance, high speed and low inertia.
3) Driven by 36-stage variable gear-box, dual hauling and dual active device. Natural wire distribution avoids abrasion damage when stranding.
4) The most advanced emergency stop device, direct controlling every reel. As soon as any wire breaks, the entire machine will automatically stop at once.
5) Ensuring supplement after any wire breaking, especially suitable for power cables and high compacted cross linking cables producing.
6) Siemens PLC control system, operating on touch screen.
Finished Product
Packing&Shipping
After Sales Service
One Stop Station Services
1) Stand-by engineers team to provide overseas installation and commissioning service
2) 1 year warranty. During warranty, we provide free of charge for repairing cost
3) Lifetime maintenance. After-sales department can provide life long maintenance service
Company Introduction
Far East (China) Group Limited, we design and produce metal casting equipment, wire drawing equipment, and cable production machinery of the highest quality. We pride ourselves on our various strengths that begin with product design and end with our excellent after-sale services to make sure that our customers are satisfied with their metal machinery. Feel free to browse our site and contact us if you have any additional questions about our company or products.
FAQ
1. Q:Are you a factory or trading company?
A: We are a factory.

2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in Jiangsu, China.You can fly to Shanghai airport directly. We welcome you to visit our factory.

3. Q: Why choose your factory for service?
A: Our factory is specializing in producing cable machines for about 10 years. We can provide thoughtful pre-sale and after-sale service.

4. Q:How does your factory do regarding quality control?
A: "Quality first, customers foremost”. We always attach great importance to quality controlling from the very beginning to very end.

5. Q: What is your company mainly produce?
A: Extrusion line series, Varieties of double twist buncher, Varieties of back-twisting, pair-twisting and double-twist cabling
machine, Series of coiling and packing machine,Complete plant of Lan cable, Varieties of single-twist cabling machine, Auxiliary equipment.
