Application:

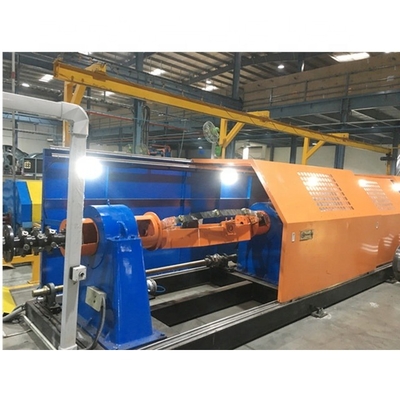

The skip stranding machine is used for stranding 1+6 structure conductor. The conductor from 15 sqmm to 100 sqmm aluminum and copper 1+6 conductor.
Structure
| Model (Skip Stranding Machine) | JGB-630(500) | JGB-700 | JGB-800 | |
| Diameter of single wire | Copper | φ1.8-5 mm | φ2-5 mm | φ2.5-5 mm |
| Aluminum | φ2.0-5 mm | φ2.5-5 mm | φ3.0-5 mm | |
| Galvanized steel wire | φ1.0-4.0 mm | φ1.2-4.0 mm | φ1.5-4.0 mm | |
| Maximum stranded conductor OD | φ35-55 mm | φ35-55 mm | φ35-55 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 31.1-235.0mm | 31.1-235.0mm | 31.1-235.0mm |
| Max. Rotating Speed | 6 Bobbin Stranding Cage | 1000 r/min | 800 r/min | 700 r/min |
| Capstan | Capstan Wheel Diameter | 1200 mm | 1400 mm | 1400 mm |
| Maximum Haul-off Force | 10 T | 10 T | 12 T | |
| Motor Power | 37 KW | 45 KW | 55 KW | |
| Bobbin Size | 630*475*127 | 710*530*127 | 800*600*127 | |
| Center Payoff Bobbin | 630*475*127 | 710*530*127 | 800*600*127 | |
| Take-up Bobbin | 1250*950*80 | 1600*1180*80 | 1600*1180*80 | |
Pallet Packing, Wooden Packing, Vaccum Packing are all avaible as per your request.
Warranty Period - 12Months:
After Service Support:
Factory Visit Available:
Strongger commissioning:
we understand that onsite support for commissioning is a crucial activity and hence we provide a skillful team of experienced engineers to ensure that the start-up and commissioning of our system at your plant is smooth.
Our start-up team is capable to manage and reduce unforeseen risks of performance problems and equipment failures. Our team follows standard processes to ensure that the necessary electrical, mechanical and environmental criteria have been met before commissioning.
During special period, our team can provide powerful Remote Commissioning.
Q: What can you offer me?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
Q:Could we appoint the parts brand?
A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.
Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical successful commissioning at the buyer's factory)
Q: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are Alibaba legitimate certification company (VIP),and we support payment L/C,T/T and so on to ensure your safety.
Q: Why do I choose your company?
A: We have more than 15 years of professional experience in the area of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
