Construction works   PC Steel Wire Jump Strander

1.0 set
MOQ
Construction works   PC Steel Wire Jump Strander
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Machine Type: Bow Skip Strander
Weight (KG): 14500
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Gear, Pump
Warranty: 3 Years
Key Selling Points: High Productivity
Applicable Industries: Construction Works
Showroom Location: Ukraine, Turkey, Russia
Type: PC Steel Wire Skip Strander
Steel Wire Number: 7 Wires
Production Capacity: 30000 Tons Per Annual
Product Sizes: 17.8, 15.24, 12.7, 11.1, 9.53
Max. Tension: 160000N
Wheel Diameter: 2200mm
Reel Size: 1120/1250mm
Frequency Furnace: 600 KW
Temperature: 370-420℃
Machine Installation Area: 95000*8500mm
Basic Infomation
Payment & Shipping Terms
Packaging Details: As required
Supply Ability: 6 Set/Sets per Year
Product Description
Product Description

Product Application

We supply PC steel wire drawing and stranding machine specialized for producing PC wire
and strand used in pre-stressing of concrete for construction of various types of structures (Road, River & Railway, Bridges,
Building, etc.). The machine could produce flat or ribbed shape PC wire indicated by clients.

SPECIFICATIONS FOR PC STEEL WIRE SKIP STRANDER
No.
Item
Specification
1
Products Size (Diameter)
17.8mm, 15.24mm, 12.7mm, 11.1mm, 9.53mm
2
Working speed
100m/min (For stranding 15.24mm strand)
3
Max. Tension
160000N
4
Tension capstan diameter
2000mm
5
Induction heating unit power
600KW
6
Induction heating Temp.
370-420℃
7
1st Tension motor
200KW
8
2nd Tension motor
250KW
9
Stranding motro
132KW

Main Features

---Bow skip type strander to produce international standard strands.
---Double couple of pulling capstan up to 16 tons force.
---Movable induction furnace for wire thermo mechanical stabilization
---High efficiency water tank for wire cooling
---Double spool take-up/pay-off (The first working as take-up and the second working as pay-off for rewinder)
Detailed Images

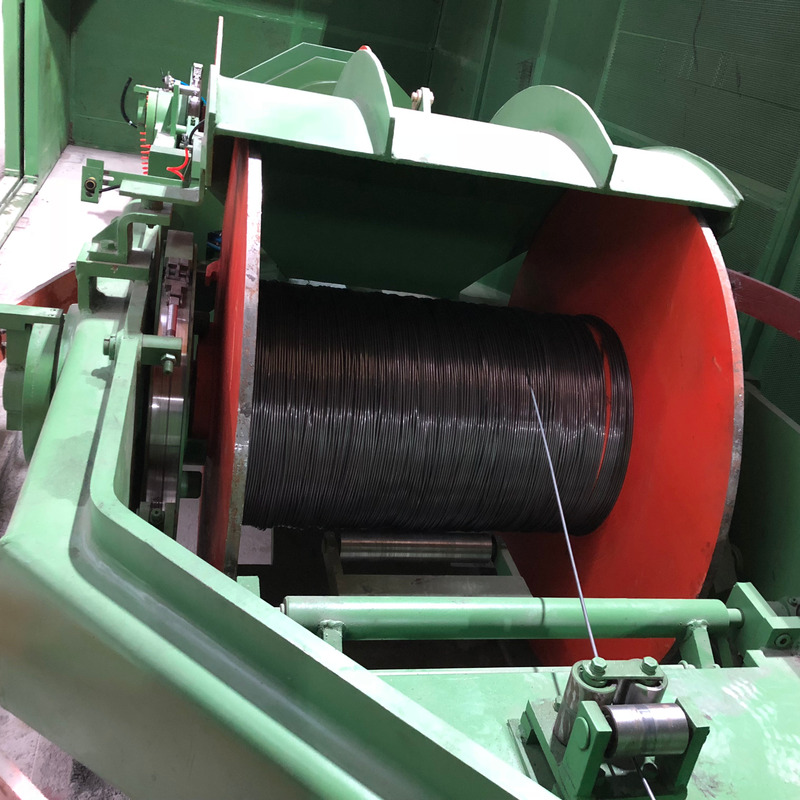

Main Strander


Motor Power: 132KW

Spool Size: 1250mm

Rotating Speed: 500 RPM

Linear speed(for 15.2mm strand): 100m/min





Tension capstan



---Double couple of pulling castan up to 16 tons force

---250KW powerful motor driven

---U & V shape grooves with surface treated.

---Up to 2000mm diameter of capstan.


Movable Induction Heating Unit

---Movable induction furnace for wire thermo mechanical stabilization.
---High efficiency water tank for wire cooling.
---Infrare detector for monitoring outlet strand temperature.
---Non-contact coil induction heating for strand





Tension Controller.

The tension device is mounted before the take-up spool for pneumatic tension adjustment

Double take-up

Double spool type take-up with O.D. of 2700mm and driven by 55KW powerful motor. These two spools can be take-up for skip strander or pay-off for rewinder

Rewinding machine

Collapsible barrel with openable flange that easy for customer to package the strand coil.
Related Products

PC Steel Wire Breakdown Machine

It is used for drawing the wire rod to smaller size wire.
No. of drawing capstan: 9
Motor power of each capstan: 132KW
Drawing speed: 5.5-7m/s
Line composition: Rotating pay-off------9/1200 drawing machine-----1250 Spool take-up
