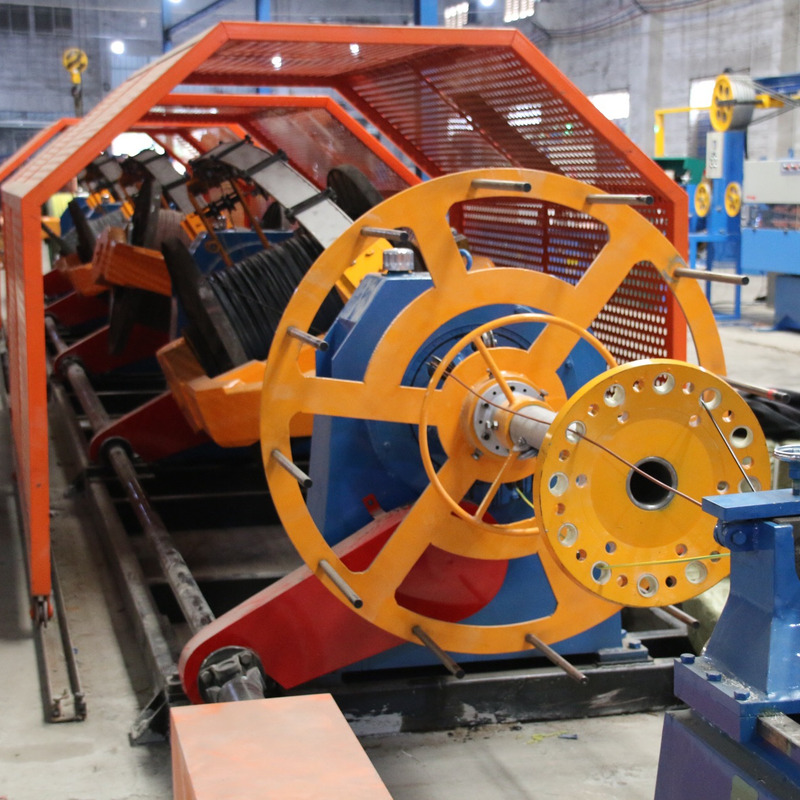

630/6+1 skip bow cable wire stranding machine

1 Set
MOQ
$80,000.00(1 - 1 Sets) $77,000.00(>=2 Sets)
Price
630/6+1 skip bow cable wire stranding machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: Bow Type Stranding Machine
Usage: Stranding
Product Name: Bow Type Stranding Machine
Single Wire Diameter: 3-11,4-13,5-15.6-16,7-18,8-20(mm)
Max After Stranding Diameter: 35,40,45,50,55,60(mm)
Stranding Pitch: 360-1750,480-2000,600-2250,720-2500,840-2750,960-3000(mm)
Cage Rotate Speed: 200,185,150,130,120,100(RPM)
Max Line Speed: 350,370,338,325,330,300(M/MIN)
Capstan Wheel Diameter: 800,800,1300,1500,1800,2000(mm)
Pay Off Drum Diameter In Cage: 630,800,1000,1250,1400,1600(mm)
Central Pay Off Drum Diameter: 630,800,1000,1250,1400,1600(mm)
Main Motor: 15,18.5,22,30,37,45(KW)
Basic Infomation
Model Number: bow type stranding machine
Payment & Shipping Terms
Packaging Details: bare packing or film packing
Supply Ability: 5 Set/Sets per Month
Product Description
Products image
Product Paramenters
Model Main Specification
BJY 630
BJY 800
BJY 1000
BJY 1250
BJY 1400
BJY 1600
Single Wire Diameter
3mm-11mm
4mm-13mm
5mm-15mm
6mm-16mm
7mm-18mm
8mm-20mm
Max Stranded Diameter
35mm
40mm
45mm
50mm
55mm
60mm
Stranding Pitch
360-1750mm
480-2000mm
600-2250mm
600-2250mm
840-2750mm
960-3000mm
Cage Rotate Speed
200RPM
185RPM
150RPM
130RPM
120RPM
100RPM
Max Line Speed
350M/MIN
370M/MIN
338M/MIN
325M/MIN
330M/MIN
300M/MIN
Capstan Wheel Diameter
800mm
800mm
1300mm
1500mm
1800mm
2000mm
Pay Off Drum Size In Cage
PN630
PN800
PN1000
PN1250
PN1400
PN1600
Central Pay Off Drum Size
PN630
PN800
PN1000
PN1250
PN1400
PN1600
Take Up Drum Size
PN800-1600mm
PN800-1600mm
PN1000-2000mm
PN1000-2000mm
PN1000-2000mm
PN1250-2500mm
