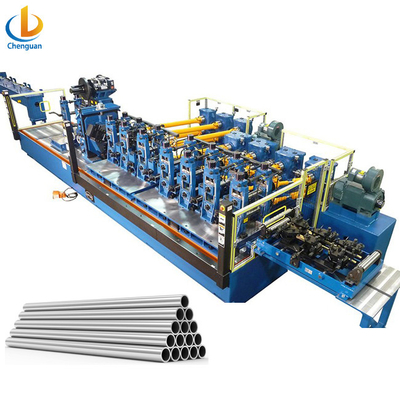

Name: Steel tube mill equipment machine for making erw pipe washroom pipe making machine
Brand: Steel tube mill equipment machine for making erw pipe washroom pipe making machine
SKU: CG-TM127
Price: 118 USD
Availability: InStock
Rating: 4.6 (133 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Machine Type: Tube Mill Line

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty Of Core Components: 2 Years

Core Components: PLC, Engine, Bearing, Motor

Warranty: 2 Years

Condition: New

Key Selling Points: Automatic

Showroom Location: India

Applicable Industries: Hotels, Construction WorksÂ , Building Material Shops, Machinery Repair Shops, Manufacturing Plant

Weight (KG): 2000

Product Name: Steel Tube Mill Equipment Machine For Making Erw Pipe

Model: CG-TM127

Produciton Speed: 20-70m/min

Outer Diameter: 48-127mm

Pipe Shape: Round/Square/Rectangle Pipe

Wall Thickness: 1.0-4.0mm

Material Of Pipe: Steel/Stainless Steel

Pipe Length: Custom

Driving Motor: 160kw + 200kw

Welder Power: 400kw

Basic Infomation

Model Number: CG-TM127

Payment & Shipping Terms

Packaging Details: Plastic film/Wood box

Supply Ability: 30 Set/Sets per Year

Product Description

Steel tube mill equipment machine for making erw pipe Washroom pipe making machine

Product Description

Model	Produciton Speed	Outer Diameter	Wall Thickness	Driving Motor	Welder Power
CG-TM32	20-100m/min	13.0-32.0mm	0.6-2.2mm	45kw * 1set	60kw
CG-TM50	20-100m/min	16.0-50.8mm	0.6-3.0mm	90kw * 2sets	200kw
CG-TM76	20-90m/min	12.7-76.0mm	0.7-3.0mm	132kw * 2sets	300kw
CG-TM89	20-80m/min	25.0-95.0mm	1.0-3.0mm	132kw * 2sets	300kw
CG-TM114	20-70m/min	40.0-114mm	1.0-3.5mm	132kw * 2sets	300kw
CG-TM127	20-70m/min	48.0-127mm	1.0-4.0mm	160kw+200kw	400kw
CG-TM165	20-70m/min	76.0-165mm	2.0-6.0mm	200kw * 2sets	500kw
CG-TM219	20-50m/min	89.0-219mm	4.0-8.0mm	200kw * 3sets	500kw
CG-TM325	20-50m/min	140-325mm	4.0-10.0mm	-	-
CG-TM406	20-50m/min	219-406mm	6.0-16.0mm	-	-
CG-TM508	20-50m/min	273-508mm	6.0-18.0mm	-	-

PRODUCT INTRODUCTION

This high-frequency pipe production line is specialized equipment to produce high frequency straight seam welded pipes for structuralpipe and industrial pipe with Φ20mm~Φ500mm and wall thickness of 0.4~18.0mm. Through optimization design, best materials choice, andaccurately fabrication and rolls, the whole line can be reached high precision and high speed. Within suitable range of pipediameter and wall thickness, pipe production speed can be adjusted.

Production Application

1. Oil & Gas Pipes	7. Wire and Cable Protection Pipe
2. Heating Pipe	8. Structural Support Steel Pipe
3. Low-pressure Process Pipe line	9. Industrial Steel Pipes
4. Low Pressure Fire Fighting Pipe line	10. Decoration Pipe
5. Sewage Pipes	11. Water Pipe
6. Steel Scaffolding Pipe	12. Building pipe

Product Display

1. Double heads Decoiler (Hydraulic model)

It is used to support the coil and provide raw materials for the production line. The reel is cantilever type, pneumatic expansion and contraction; in order to maintain the tension of the strip and prevent loose coiling, the reel adopts pneumatic brake.

2. Shearing & Welder

To connect the strips after cutting the preceding coil tail end and the succeeding coil top end and being welded together by CO2 gas shielding welding to keep the Pipe Welding Line running continuously.

3.Horizontal accumulator and Vertical accumulator

Storage of steel coil, Advantage: The feeding is more stable, without bending, while reducing the resistance of the feeding, it will not cause damage to the galvanized layer surface, and the noise is relatively lower

4.Forming and Sizing Machine

The steel strip of a certain width is bent into corresponding specifications of round pipe, rectangular pipe or open profile through roll forming.This unit consists of five parts: forming machine, welding machine, cooling part, sizing machine, and straightening machine.

5.High Frequency Welding Equipment

Tube Mill High Frequency Welder is specially designed for straight seam welding.The high power capacitor C and inductor coil L compose current-mode parallel upper-voltage resonance circuit, which doesn’t need output transformer.

6. Cooling

Cool down quickly, Fixed welded pipe shape

7. Cold Flying Saw

Cut pipe, Low inertia DC motor through mechanical transmission device, measuring, calculate and driving saw car at the same speed with the high-speed running pipe, then cut off the pipe with specified length.

8. Run out table(Stacking Packing Machine)

It’s a packaging equipment designed especially for steel pipe industry, which can realize automatic stacking the tubes or pipes into hexagonal or square shapes, and then Automatic bundling, Sloping, Digital Weighter

9.Straightening device

Straightening of finished pipes with sizing, The upper, lower, left and right positions of the vertical roller of the straightening machine can be adjusted to ensure the outer diameter of the finished rigid tube

Company Profile

Shijiazhuang Chenguan Technology Co., Ltd

Shijiazhuang Chenguan Technology Co., Ltd, factory is located in Shijiazhuang Economic Development Zone, Hebei Province, our company specializes in the design and manufacture of various specifications and models of high-frequency pipe making machine units, carbon or stainless steel precision welded pipe equipment, high-precision steel-plastic composite welded pipe units. The company integrates design, manufacturing, sales, and service, and can provide customers with complete solutions.

Why Choose Us

FAQ

Steel Pipe Making Machine Tube Mill Steel Square Pipe Making Machine

Q: Are you a trading company or a manufacture factory ?
A: We are pleased to introduce our company, Our compnay is one of China largest manufacturers of pipe machine, and other related machines.Our factory approved by BV, machines approved by CE & ISO9001. Welcome to visit us for long business cooperation!

Q: Can your factory customize the machine for clients ?
A: Yes, we can.

Q: Whatis your payment terms ?
A: By T/T (35% prepayment for confirming the order , 65% balance payment covered before delivery) OR 50% by T/T , 50%
byIrrevocable L/C at sight .

Q: How about after-sales service ?
A: We will send professional engineers to final customer’s factory for machine installation , commissioning and carefully working training . The final customer will afford related cost.

Q: How about the installation service ?
A: Our company will send professional engineers to final customer’s factory for machine installation , commissioning and carefully working training . The final customer will afford related cost .
