Vandal Proof Robotic CCTV Rainfall Inspection Camera with 300m Electrical Cable Reel

1 Set
MOQ
$35,000.00(1 - 2 Sets) $30,000.00(3 - 4 Sets) $26,000.00(>=5 Sets)
Price
Vandal Proof Robotic CCTV Rainfall Inspection Camera with 300m Electrical Cable Reel
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: X5-HT
Warranty: 1 Year
Special Features: Vandal-proof
Sensor: CMOS
Style: PTZ Camera
Function: Waterproof / Weatherproof, Wide Angle, Vandal-proof, PAN-TILT, RESET
Video Compression Format: H.264
Data Storage Options: Cloud, Memory Card, Full HD, SD Card
Application: Outdoor
Customized Support: Online Technical Support, Customized Logo, OEM, ODM
Product Name: Pipeline Robot
Definition: 200W Pixels
Cable Length: 150m
Protection Class: IP68
Pipe Diameter: 300-3000
Main Control: Tablet
Camera: PTZ
Zoom: 12 Digital, 10 Optical
Channels: 64
Network: Wifi
Basic Infomation
Model Number: X5-HT
Payment & Shipping Terms
Packaging Details: Wooden case for exporting
Supply Ability: 200 Set/Sets per Month
Product Description
Company Profile
Company Introduction
Wuhan Easy-Sight Technology Co., Ltd, found in Nov 2000, in Wuhan, Hubei province, China, is a leading producer of pipe cleaning, inspection and rehabilitation equipment.
In July 2015, Easy-Sight successfully became the first listed company on the New Third Board in the industry in China with a stock code of 833122. As a team with over 300 employees, Easy Sight is dedicated to providing a whole series of sewer industry products and systems to meet customers' different requirements.
Our main products include pipe periscope (Quickview), CCTV inspection robots, pipe sonar system, sonar-CCTV system, push rod camera, video jetting nozzle, UV curing rehabilitation system, 3D manhole scanner, GIS data management system and so on.
The company adheres to the implementation of ISO's quality management system and continuously improves the quality of employees and products. Easy-Sight, as an intelligent pipeline solution supplier, has got approval of ISO9001, ISO14001, OHSA18001 and other management system certifications, such as CCTV inspection robots and pipe periscope have obtained FCC certification, CE certification.
Products Description

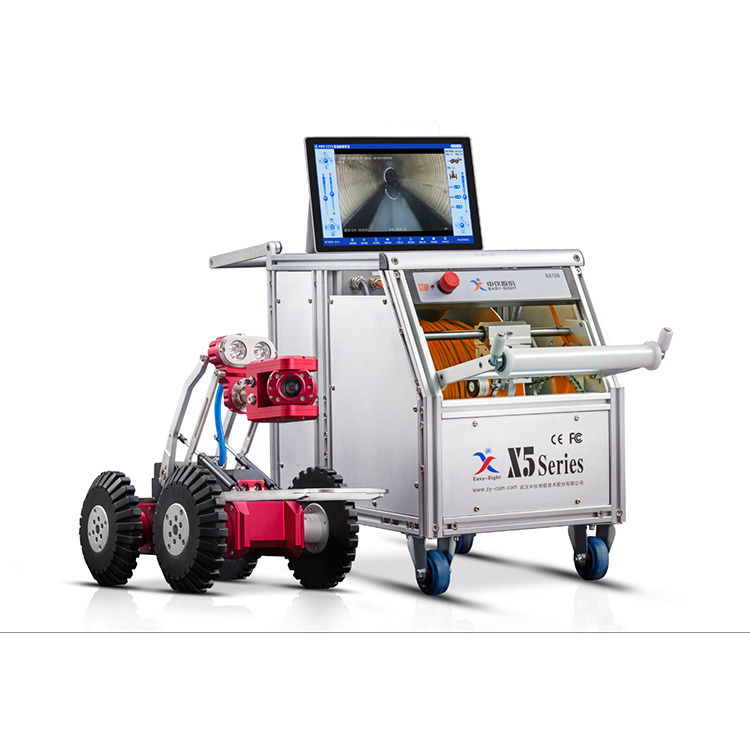

X5-HT CCTV Inspection Robot
X5-HT mainly consists of crawler, HD camera, cable reel and main control. The crawler can be equipped with both our HD axial camera and HD rotary camera to response the operation orders of the main controller after connecting the cable reel with the main controller, such as crawler’s going forward, back, direction turning, stop and speed adjustment, the electrical lift up and down, lighting adjustment, camera rotation, zoom and focusing, etc. During the inspection, the main controller can real-time display and record images from the camera and state information of the crawler, input the remark information and show the info on the screen.
Product Specification








  Main Control
Standard supply Microsoft surface tablet, 8G+128G, touch screen, with keyboard, built-acquisition software
Customer can use their own laptop, no specific requirements for the configuration
 Main controller wifi or Internet cable connection with the system
Software control: moving forward, back, direction turn, speed control, camera rotation, zoom and focusing adjusting, lighting control, electrical lift up and down
Status display: real-time display date and time, travel distance, project info, pipe diameter, cavity pressure value, moving speed, etc
Text input: can input characters like project info, inspector, and other info you may The info can be displayed in multi language, like Chinese, English, French, Japanese, Korean and so on
Clock indicates: the defect can be clock located and displayed
Warning function: rolling angle overrun warning,effectively prevent rollover; or extremely low or high air pressure warning;






   Cable Reel
IP63, dust proof, water splash proof
Standard cable length 150m, longer can be customized, in yellow color
 Cable parameters: 4-core cable,each core cable diameter 2mm , drawing anti-Kevlar 300 kg, imported polyurethane sheath,waterproof, wear proof, acid proof, corrosion proof
Automatic cable take-out and retrieve with electromagnetic clutch
With stop switch in case of emergency
Wifi antenna on the top of cable reel, connect with wifi to control
Four steerable wheels, can move the cable reel freely
Cable length counting accuracy is 1mm with high precision meter counter











     Crawler
IP68, used in 10 meters water depth, air tightness protection,built-in pressure sensor, pressure indicator
Working temperature: -10℃~50℃
Diameter used for : 300mm ~ 1000mm ( when camera len in center of pipeline)
Material: brass, stainless steel, aluminum alloy
Non-removable electric lift, the height difference up tp 174mm
Driven: Double 90W DC motor,6 wheels drive, maximum travel speed up to 32m / min
Climbing: depend on different pipe situation, the maximum gradeability about 45 °
Circuit protection: locked motor, over-current, overpressure protection of motor
Lighting: Forward 8x10W bright condenser LED lights; back 2x10W highlight LED; All the light intensity continuously adjustable brightness
Rear-view camera resolution 1280*720 (100W pixels)
Four sets wheels provided: 4,6,8, 10 inch rubber wheels
U-shaped protective frame preventing the camera crash
Weight: 16Kg with electrical lift







  PTZ Camera
IP68, used in 10 meters water depth, air tightness protection,built-in pressure sensor, pressure indicator
Working temperature: -10℃~50℃
Electric 360° radial limitless rotation, 2* 135 upward and downward rotation, one click for reset
Lighting source: 4 LED lights
 Imaging system: color 1/3 ", 2 million pixels (1920 * 1080) CMOS, viewing angle 6.7 ° - 68 °, sensitivity 0.1Lux
Automatic focusing, adjustable manually
10x optical zoom, 12x digital zoom
Laser measurement module for crack measurement
Dimension: 155mm * 95*90mm, weight: 1.5Kg

   Joysticker
Wire connection with main controller
Function: camera rotation and reset, electric lift up and down, lighting adjust, speed control, direction adjust
Application Overseas
CCTV inspection robot in Europe
CCTV robot in South East Asia
CCTV Inspection robot in Middle East
Inspection Photo
Exhibition
FAQ
Q: What's the package? A: We have standard plywood packing case. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation? A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. So please don't worry, you will receive the parcel in good condition. Q: How to install and run the machine? A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. Most customers can learn by themselves. Q: How can I do if the machine goes wrong? A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
