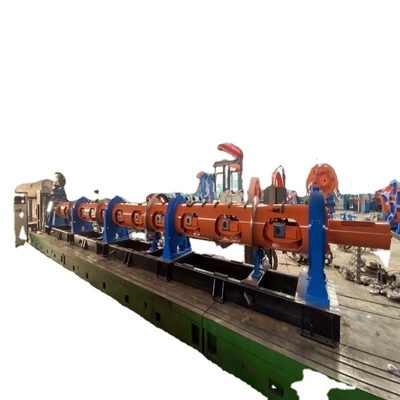

300/12 Tubular Stranding Machine
Machine Technical Parameter
NO ITEM DESCRIPTION
1 Maximum Working Speed (R.P.M) 1500
2 Normal Working Speed(R.P.M) 1000
3 Inlet wire diameter range(mm) 0.20-0.75
4 Maximum stranded rope diameter(mm) 3.2
5 Control method of lay-length Electronic stepless lay-length control
6 Range of Lay-length(mm) 0-100mm(Customized )
7 Diameter of dual capstan wheel (mm) Φ477.5x2
8 Core wire/strand bobbin size (mm) Customized
9 Take-up bobbin size(mm) Customized
10 Bobbin in cradle size (mm) Φ200
11 Main motor power(kw) 18.5
12 Traction motor power(kw) 7.5
13 Take-up motor power(kw) 4
Machine Configurations description
ITEM DESCRIPTION
Load method of core pay-off
bobbin
independent type
Tension control of core bobbin Adopt mechanical damping adjust the tension with damping chain,
Pay-off bobbin size Customized(The buyer supply the drawings)
Tube driving mode
Drive by the synchronous toothed belt which connecting with the main
motor.
The structure and process of tube
Made up of high quality seamless steel pipe,get the tempering treatment
after cuttuing and welding.
After finish machining,balanced by accurate adjustment balancer,ensure
the balance of operation.
Wire guide dies The wire guide dies are made up of carboloy metal(YG8)
The support method of tubes The tubes are supported by large bearings,each tube has three cradles.
The lubricate method of large
bearing
Pumped oil lubrication
The brake system of tubes Every tube possess one set of pneumatic brake devices.
BEYDE is a subsidiary of Hebei HEXING electrical machinery Co., Ltd., a professional manufacturer and exporter of cable equipment. Founded in 1983 by Mr. Chen Yuke, grandfather of current president Mr. Chen Jiuzhang, HEXING has a well-equipped factory with an area of 10,000 square meters located in Hejian, Hebei province, home to the manufacture of cable machinery and equipment. HEXING is a well-known brand in China's cable industry, serving over 70% cable manufacturers in northern China. BEYDE supplies all types of machines including Laying-up machine, Rigid Stranding Machine, Tubular Stranding Machine, Planetary Stranding Machine and help wire & cable manufacturers lower production cost and ensure quality of final products. Beyde was established for export business of HEXING as a result of increasing OEM business of HEXING for many Chinese exporters. With mature technological expertise, BEYDE provides cost-effective solutions for wire & cable manufacturers to expand or update their production lines. Our machines have been exported to the United States, Russia, Malaysia, Saudi Arabia, Iran and other countries. The quality and performance of our products has been widely recognized and praised by overseas customers. We can customize the capacity, color of our machines according to the demands of clients. We look forward to working with more overseas cable manufacturers to have mutually beneficial cooperation and create success and glory together!
Our products passed ISO 9001 international quality system certification with domestic first-class product quality testing center.
FAQ |
1,Q: What is your main brand for the electrical and mechanical parts? A: China famous brand |
2, Q:could we appoint the parts brand? A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like. |
3, Q: could you please arrange the installation and commissioning ? A: Yes , we could and the buyer pay the charge |
4, Q: could you arrange the production education? A: Yes , we could and the buyer pay the charge |
5, Q: could you do the design for the whole plant A: Yes , we can. |
6, Q: could you offer the production process design A: Yes , we can. |
7, Q: what is the difference with other supplier? A: what we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering . |
8.Q:What's the payment terms? A:T/T,30% deposit and 70% balance before delivery. |
9, Q:How long the guarantee: A: one year and charge for repair the whole life. |
